DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing

DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing
DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing
Basisinformatie
Plaats van herkomst: China
Merknaam: Runpaq
Certificering: NSF
Modelnummer: 77c-dn50-6
Min. bestelaantal: 50 stukken
Prijs: USD6/piece (50-500 pieces), USD4/piece (>500 pieces)
Verpakking Details: karton + pallet
Levertijd: 15-21 dagen
Betalingscondities: T/T, L/C, D/A, D/P, Western Union
Levering vermogen: 20000 reeksen/maand
Beste prijs Contact nu
Stijl: de gegroefte montage van de eindpijp Druk: 1200 psi/83 bar
Diameter: DN25-DN1200, 1“ - 48“ Pakking: EPDM
Bout & noot: ss304 Huisvestingsmateriaal: SS304, 316, 316L, 2205 duplex, super duplex 2507, heet ondergedompeld gegalvaniseerd kneedbaar ijzer
Model: 77C-DN25 Toepassing: UF/het plan van RO/van de Waterzuiveringsinstallatie, landleachet
Vorm: recht, gelijke Productnaam: gegroefte montage, gegroefte flexibele koppeling
Hoog licht:

DN15 GI Grooved Pipe Fitting

,

316L Housing Grooved Pipe Fitting

,

DN300 Grooved Pipe Fitting

gI pipe fitting, union tail pieces, grooved pipe fitting, dN15



Range grooved pipe fitting:

You can find a complete line galvanzied iron pipe fitting for your plumber works: reducer elbow, nipples in different length and diameter, reducer socket, Male and female thread, 90 degree elbow, crossover, 45 degree elbow. End connect: female or male thread, grooved.



General description

The grooved coupling clamp can be a flexible coupling or a rigid coupling. The victaulic type flexible coupling is designed to connect grooved pipe systems. In order to play the role of grooved pipe joint/pipe fitting joint, a rigid coupling is designed to interconnect the grooved pipes so that there is no relative movement between them. When precise alignment of two grooved pipes/shafts is required, rigid grooved couplings are usually used. Severe radial or axial misalignment can cause high stresses and lead to premature failure.



Specifications

  • Pressure rating option: 300 psi ( 21 bar) / 600 psi / 1200 psi / 1500 psi / 1800 psi.
  • Size range (Diameter): DN 25 to DN300 | 1" to "
  • Operation temperature range: -50 ℃ to 150 ℃
  • Standards: ANSI/AWWA/ASTM/ANSI/NSF61

Quick joints housing materials:

Nylon, other composite, plastic material upon demands.



Bolts&Nuts:

  • Type 304 stainless steel track bolts and nuts to ASTM F-593
  • Type 316 stainless steel track bolts and nuts to ASTM F-593
  • Type 316 stainless steel track bolts ASTM A193 B-8M with silicone bronze heavy duty nuts to ASTM B98 C65100​

Rubber Gaskets or seals:

The gasket seals is C-shaped, made of standard gasket EPDM (ethylene propylene diene monomer) for cold water, hot water, rare acid, oilfree air and multiple chemical product (-50~150 ).It is not suitable for medium like petroleum



Data sheet

Nominal
size

Pipe

OD

Pressure

rating

Pipe end

separation

 Dimensions
A B C
mm mm psi mm mm mm mm
in in bar in in in in
25
1		 33.4
1.315		 300
20.67		 0-1.6
0-0.06		 54
2.126		 94
3.701		 42
1.654
32
1.25		 42.20
1.660		 300
20.67		 0-1.6
0-0.06		 63
2.480		 103
4.055		 44
1.732
40
1.5		 48.30
1.900		 300
20.67		 0-1.6
0-0.06		 70
2.756		 112
4.409		 44
1.732
50
2		 60.30
2.375		 300
20.67		 0-1.6
0-0.06		 82
3.228		 124
4.882		 44
1.732
65
2.5		 73.00
2.875		 300
20.67		 0-1.6
0-0.06		 96
3.780		 148
5.827		 44
1.732
65 76.10
3.000		 300
20.67		 0-1.6
0-0.06		 100
3.937		 152
5.984		 44
1.732
80
3		 88.90
3.500		 300
20.67		 0-1.6
0-0.06		 113
4.449		 166
6.535		 44
1.732
100
4		 114.3
4.500		 300
20.67		 0-3.2
0-0.13		 140
5.512		 193
7.598		 48
1.890
125
5		 141.3
5.563		 300
20.67		 0-3.2
0-0.13		 167
6.575		 222
8.740		 50
1.969
150
6		 168.3
6.625		 300
20.67		 0-3.2
0-0.13		 196
7.717		 252
9.921		 55
2.165

200

8

219.10

8.625

300

20.67

0-3.2

0-0.13

314

12.362

377

14.83

60

2.362

250

10

273.00

10.75

300

20.67

0-3.2

0-0.13

314

12.362

377

14.843

50

2.363

300

12

323.90

12.75

300

20.67

0-3.2

0-0.13

366

14.409

435

17.126

64

2.520



Applications

Clean water Reverse osmosis | RO system, Ultrafiltration | UF system, seawater desalination,
Waste water Water treatment, waste water treatment, seawater desalination, effluent treatment plant
Grooved piping Fire protection, industrial construction, maritime, mining, oil, gas and chemical, power generation



Pipe fittings

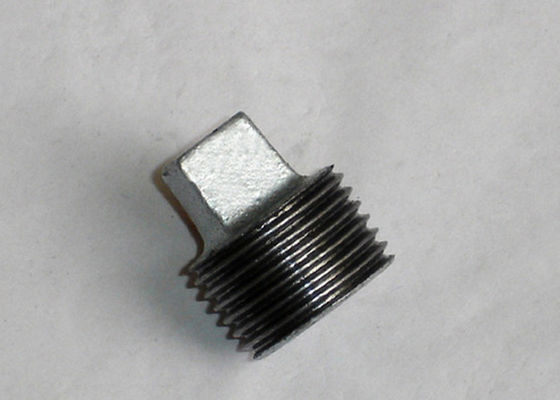

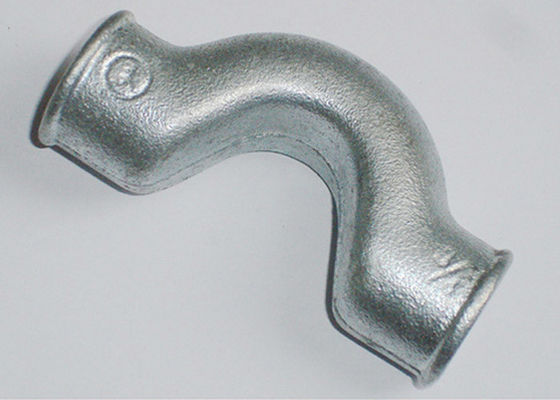

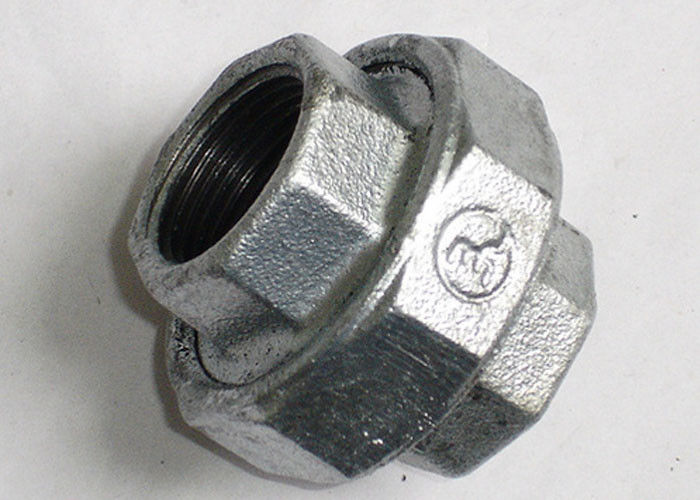

DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing 0 DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing 1DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing 2 DN15 Grooved Pipe Fitting GI Pipe Union Tail Pieces With 316L Housing 3



Competitive advantage

  • AutoCAD is used to design products and optimize structures

  • Cast Process Design by by Castsoft CAD and CAE

  • Strict Manufacturing Process control

  • Quality Control Of The Casting Material

  • Metal Material Laboratory for test of compositional, metallographic & mechanical property

  • Perfect apperance

  • Strict test standard compliance to UL213 and FM1920

  • Strict standard for sealing gaskets production and material test.

label:

Flexibele Gegroefte Koppeling,

victaulic groefkoppeling,

EPDM Gegroefte Pijpmontage
